Description

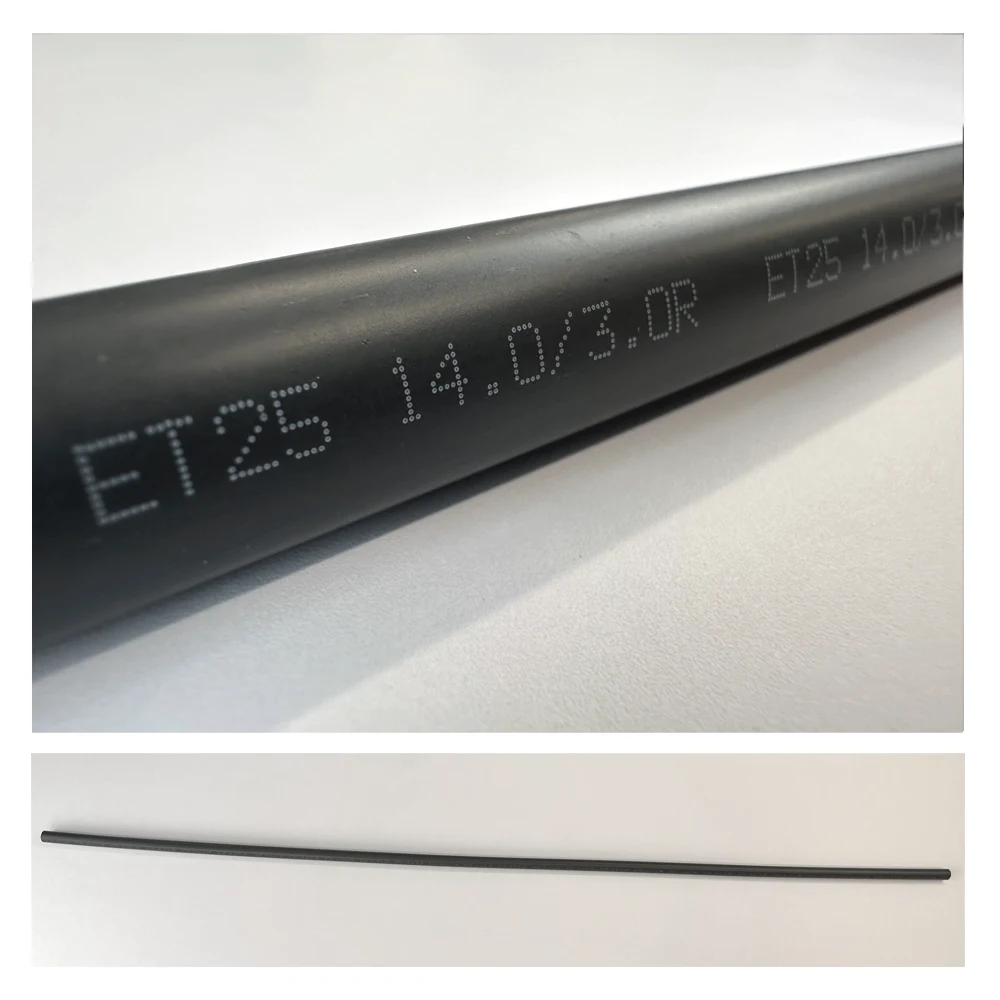

ET25-14.0/3.0R-BK Dual Wall Heat Shrink Tubing from Eurotech
ET25-14.0/3.0R-BK | P000704 | 1220mm Stick
Standard Temp OEM Engine Compartment Splice Applications | -40-125C | PO-XL Jacket | EVA Low Viscosity Adhesive
Applications
- Sealing and strain relief of multi wire splices, terminals and connectors
- Abrasion protection of hose and pipes
- Passenger, commercial vehicles, heavy equipment Fleet and recreational vehicles
- Consumer electronics and white goods
- Meets Ford, GM, Daimler, International, Caterpillar and others, splice sealing requirements
- *Application crossover for TE RAYCHEM ES2000 Stick, ES1000 Stick, DSG Splicemelt Stick, Sumitube SA2, SA3 Sticks and more
*One or more attributes may not directly match the referenced product(s), but this Eurotech model is suitable as a replacement for most applications.
Model Features
| Features | Benefits |
|---|---|
| 4:1 Shrink Ratio | Use less sizes to fit varying / multiple splice configurations & profiles |
| Semi-Rigid | Excellent protection against corrosive automotive fluids and oils at elevated temperature |
| Stiff, Rugged Outer Jacket | Provides excellent strain relief, with high impact and abrasion resistance. BK Included (CR, OR and RD colors available) |
| Thick Adhesive Layer | Provide sealing protection against current leakage, water, corrosion and contaminants. Bonds readily to PVC, XLPE and PP-EPDM cable jacket |
| Continuous Operating Temperature |
-40°C-125°C Min full recovery temperature of 125°C |
