Hildebrand Durometer Model HD3000 (Analog) A w/ Drag Pointer | 222 8051

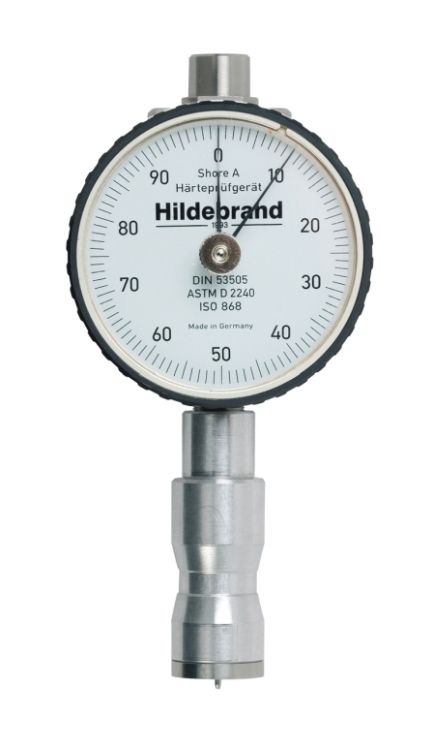

Hildebrand Durometer A with Drag Pointer (Model HD3000 – 222 8051)

Durometer Model HD3000 is our standard model. The gauge features a full-sized non-reflective dial face for readability accuracy of 1/2 point. The durometer conforms to DIN ISO 7619, ISO 868, ISO 7619 and ASTM D 2240. Model HD3000 offers maximum accuracy available in a dial model gauge at minimum cost.

Features:

• Conform to DIN, ISO and ASTM
• Drag pointer available (included on 222 8051)
  • finds and stores peak values
• Large dial surface
• Full 360° dial
• Superior 1/2 point accuracy
• Ergonomic handhold design

Specs:

• Dial diameter: 57 mm
• Total length: 121 mm
• Net weight: 0,213 g
• Range: 0….100
• Accuracy: ±0,5
• Resolution: 1
• Drag pointer: Optional
• Available types: Shore A for 222 8051 (D, C, B, AO, DO, O, OO)

Included:

• High Quality Durometer
• Custom made carrying case
• Operating instructions

Optional:

• Proprietary Calibration Certificate issued by Hildebrand Prüf- und Meßtechnik GmbH

Recommendation:

For superior accuracy and consistency, it is recommended that the appropriate operating stand is purchased with the durometer selected.

Hildebrand Durometer A with Drag Pointer (Model HD3000 – 222 8051) is designed for handheld applications or for use in combination with our Hildebrand Operating Stand Model OS-2.
