ET21 | Eurotech

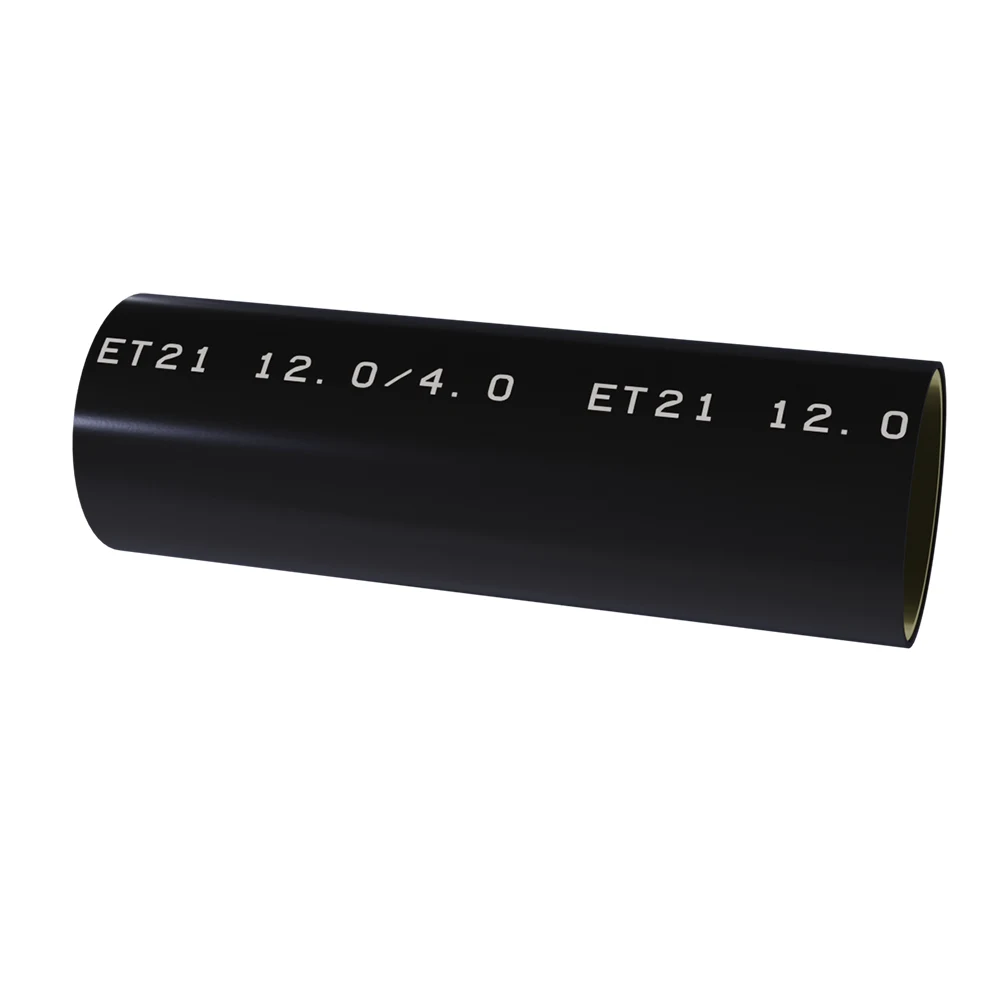

ET21 Dual Wall Heat Shrink Tube by Eurotech
PO-XL Jacket | Flexible, Flame Retardant | -55 to 110C | EVA Adhesive | High Viscosity

ET21 Dual Wall Heat Shrink Tube by Eurotech

PO-XL Jacket | Flexible, Flame Retardant | -55 to 110C | EVA Adhesive | High Viscosity

Introducing Eurotech’s Dual Wall Heat Shrink Tubing:

Eurotech proudly presents its Dual Wall Heat Shrink Tubing line, engineered to deliver performance and durability in a wide range of applications. Our dual wall tubing combines the strength and insulation of outer jackets with the sealing properties of inner adhesive lining, providing reliable protection against moisture, chemicals, and damage.

*Key Features:

  • Enhanced Protection: Eurotech’s dual wall heat shrink tubing offers protection against environmental elements, ensuring reliability of electrical connections and components.
  • Sealing Properties: The inner adhesive lining creates a waterproof seal, preventing water ingress and providing additional insulation.
  • OEM Approvals: Our dual wall tubing has garnered OEM approvals, demonstrating its adherence to stringent quality and performance standards.
  • Versatile Applications: Ideal for automotive, marine, aerospace, and industrial applications, Eurotech’s dual wall tubing offers reliability across various industries.
  • Custom Solutions: We offer customization options to meet specific requirements, including sizes, colors, and shrink ratios.

Experience the durability and reliability of Eurotech’s Dual Wall Heat Shrink Tubing for your next project. Learn more about Eurotech’s heat shrink tubing here: https://www.eurotechdirect.com/heat-shrink-tubing/

*The Features listed above refer to the Eurotech Dual Wall product portfolio as a whole. Not every bullet is applicable to each individual product.

Additional information

Model

ET21

Mode

Shrinkable

Wall Type

Dual Wall

Shrink Ratio

3:1, 4:1, 5:1

ID Supplied / ID Recovered (mm)

12.0 / 3.0, 12.0 / 4.0, 19.0 / 6.0, 20.0 / 4.0, 24.0 / 8.0, 3.0 / 1.0, 32.0 / 8.0, 40.0 / 13.0, 52.0 / 13.0, 6.0 / 2.0, 8.0 / 2.0, 9.0 / 3.0

Adhesive Feature

High Viscosity

Material Type

Polyolefin, crosslinked

Adhesive Type

EVA

Color

Black, Blue, Brown, Clear, Green, Grey, Orange, Red, White, Yellow

Tubing Code

DWS110-55PXVEVR

Min Shrink Temp

90

Min Full Recovery Temp

125

Length Change

-10+5%

Halogen Free

No

RoHS

Yes

REACH

Yes

ELV

Yes

MIL

AS23053 /4 Class 3

Low Op Temp

-55

High Op Temp

110
