ET09 | Eurotech
Eurotech ET09 Single Wall Heat Shrink Tubing
Busbar Insulation Applications (1kV class) | -40 to 105C | PO-XL Jacket | 2:1, 3:1 | Single Wall

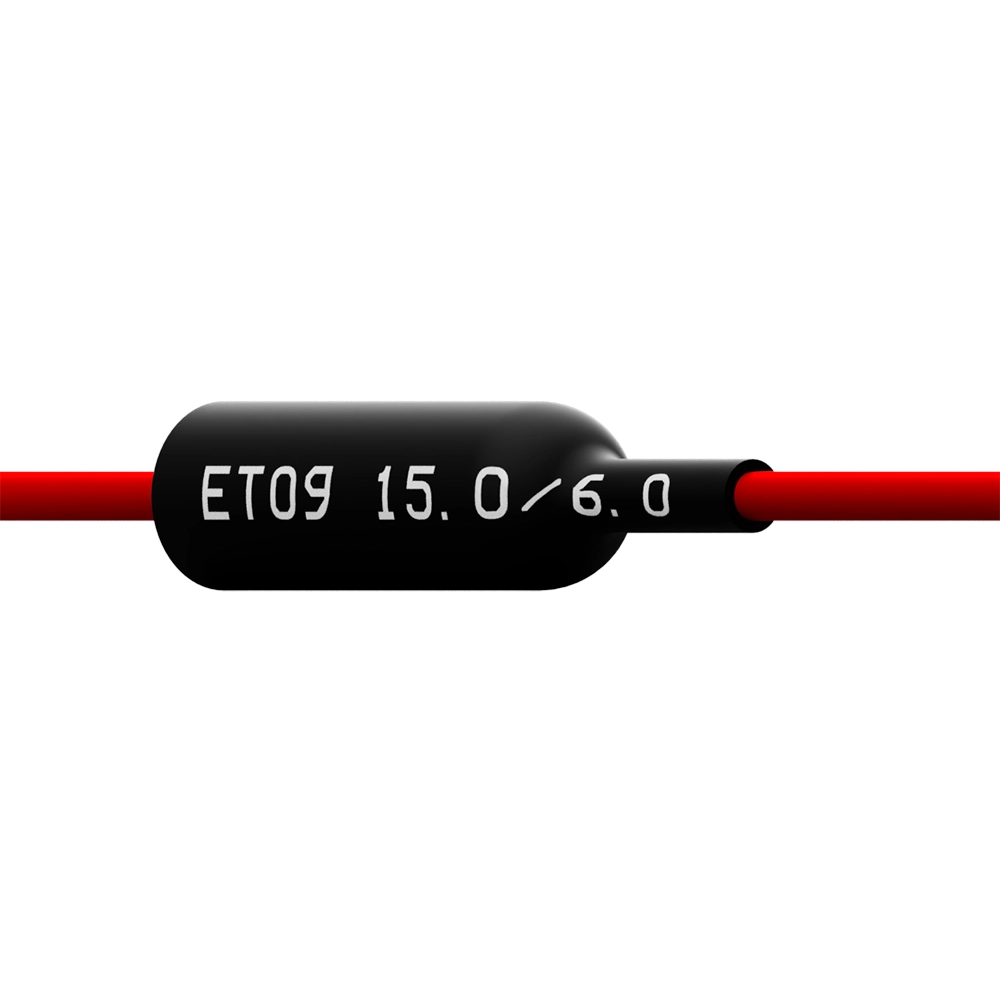

Eurotech ET09 Single Wall Heat Shrink Tubing for Busbar
Busbar Insulation Applications (1kV class) | -40 to 105C | PO-XL Jacket | 2:1, 3:1 | Single Wall
Introducing Eurotech’s Single Wall Heat Shrink Tubing:
Eurotech offers a comprehensive range of single wall heat shrink tubing solutions designed to meet the diverse needs of various industries. Engineered with precision and reliability, our heat shrink tubing provides superior insulation, protection, and strain relief for electrical components and wire harnesses.
*Key Features:
- Exceptional Insulation: Our heat shrink tubing ensures optimal electrical insulation, safeguarding components from moisture, corrosion, and other environmental factors.
- Reliable Protection: With high-quality materials and precise manufacturing, our tubing offers reliable protection against abrasion, chemicals, and mechanical damage.
- OEM Approvals: Eurotech’s single wall heat shrink tubing holds OEM approvals, attesting to its quality and performance standards.
- Versatile Applications: From automotive and aerospace to electronics and telecommunications, our tubing is suitable for a wide range of applications.
- Custom Solutions: We offer customization options to meet specific requirements, including sizes, colors, and shrink ratios.
Experience the reliability and performance of Eurotech’s Single Wall Heat Shrink Tubing for your next project. Learn more about Eurotech’s heat shrink tubing here: https://www.eurotechdirect.com/heat-shrink-tubing/
*The Features listed above refer to the Eurotech Single Wall product portfolio as a whole. Not every bullet is applicable to each individual product.
Additional information
| Model | ET09 |
|---|---|
| Model Internal ID | 12 |
| Wall Type | Single Wall |
| Mode | Shrinkable |
| Material Type | Polyolefin, crosslinked |
| Material Feature | Busbar Insulation 1 kV class |
| Adhesive Type | N/A |
| Adhesive Feature | N/A |
| Tubing Code | SWS105-40PXC000 |
| Shrink Ratio | 2:1, 3:1 |
| Color | Black, Orange |
| Min Shrink Temp | 90 |
| Min Full Recovery Temp | 125 |
| Length Change | -15+5% |
| UL Rating | E515400 UL224 |
| Halogen Free | No |
| RoHS | Yes |
| REACH | No |
| ELV | No |
| MIL | No |
| Low Op Temp | -40 |
| High Op Temp | 105 |
