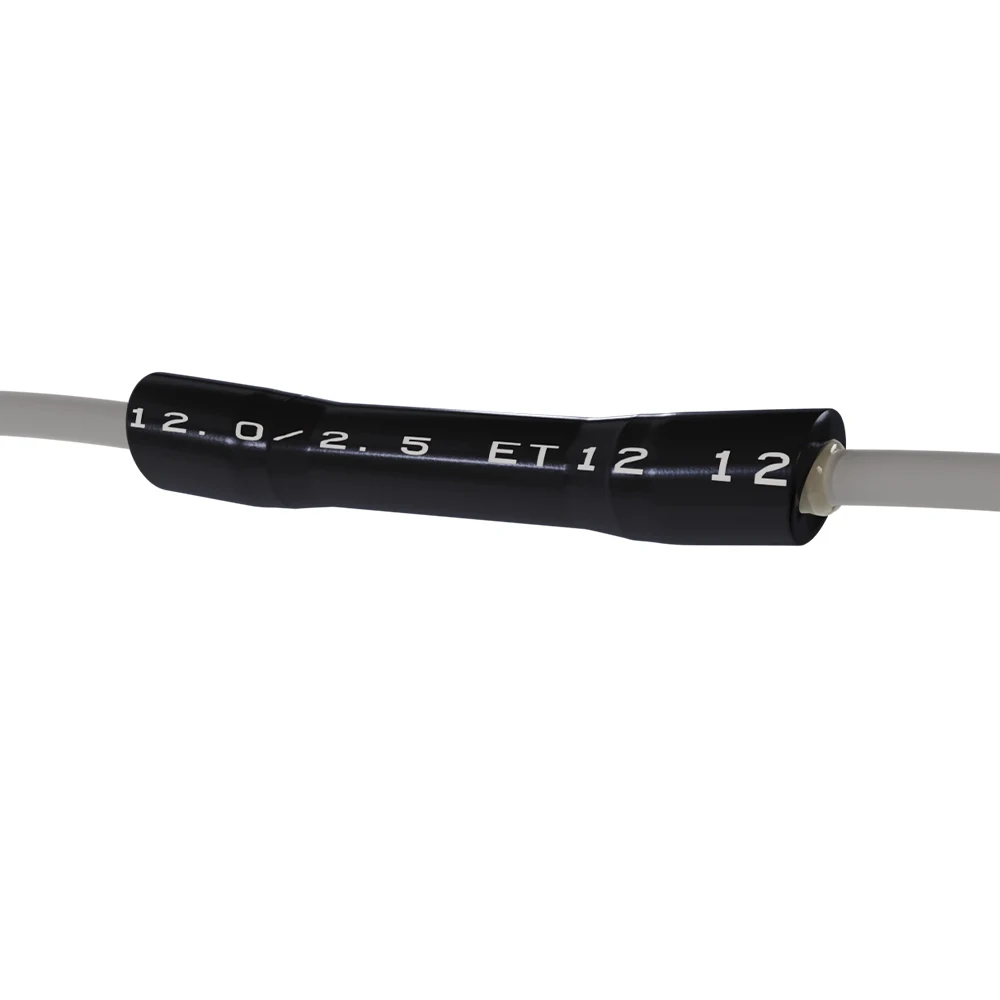

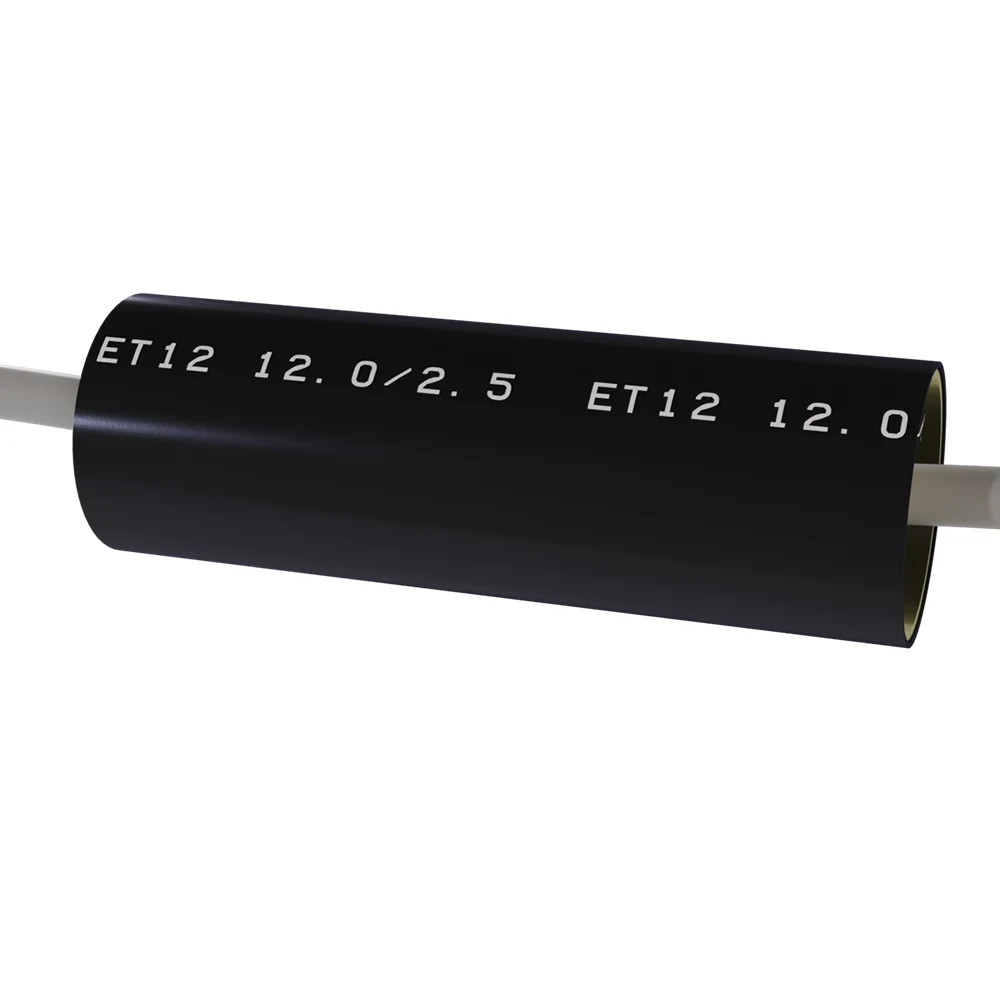

ET12 Dual Wall Heat Shrink Tube by Eurotech
Semi-rigid flame retardant adhesive lined tubing, that seals and mechanically protect wire splices and valuable components used in the most rugged on-highway / off-road and Automotive environments
Description
ET12 Dual Wall Heat Shrink Tube by Eurotech
Extended Temp OEM Engine Compartment Splice | -40 to 130C | Polyamide Adhesive | High Viscosity
Applications
- Sealing and strain relief for multi-wire splices, terminals, and connectors
- Abrasion protection for hoses and pipes
- Passenger and commercial vehicles, Heavy equipment, fleet, and recreational vehicles
- Consumer electronics and white goods
- Meets splice sealing requirements for Ford, GM, Daimler, International, Caterpillar, and others
- Technical crossover for Tyco ES1000, Tyco ES2000, SCT, DSG CDR, DSG Splicement, Sumitube SA3, and more
Features
| Features | Benefits |
|---|---|
| 4:1 Shrink Ratio | Use fewer sizes to fit multiple configurations. |
| Semi-Rigid | Excellent protection against diesel, corrosive automotive fluids and oils at elevated temperature |
| Stiff, Rugged Outer Jacket | Provides excellent strain relief, with high impact and abrasion resistance. BK and CR colors available |
| Thick Adhesive Layer | Provide sealing protection against current leakage, water, corrosion and contaminants |
| Continuous Operating Temperature -40°C-130°C |
Extended temperature range suitable for higher temperature applications (min full recovery temp 135°C) |
Additional information
| Model | ET12 |
|---|---|
| Adhesive Feature | High Viscosity |
| Wall Type | Dual Wall |
| Splice Sealing | Yes |
| OEM Approvals (Partial Snapshot) | Ford, GM |
| Crossover Product (Technical) Partial Snapshot | DSG CDR, DSG Splicemelt, Sumitomo SA3, TE ES1000, TE ES2000 |
| Crossover Product (Application) Partial Snapshot | *One or more attributes may not directly match the referenced product(s), but this Eurotech model is suitable as a replacement for most applications. | CYG DWT-135F, Sumitube SA2 |
| Shrink Ratio | 3:1, 4:1 |
| ID Supplied / ID Recovered (mm) | 11.0 / 2.4, 18.3 / 4.4, 5.7 / 1.3, 7.5 / 1.7 |
| Mode | Shrinkable |
| Material Type | Polyolefin, crosslinked |
| Adhesive Type | Polyamide |
| Color | Black, Clear |
| Tubing Code | DWS130-40PXYPAH |
| Min Shrink Temp | 100 |
| Min Full Recovery Temp | 135 |
| Length Change | -7+3% |
| RoHS | Yes |
| REACH | No |
| ELV | Yes |
| MIL | No |
| Low Op Temp | -40 |
| High Op Temp | 125-130, 130 |
