Calibration System HSG-P for Brugger HSG Series

Description

The HSG-P calibration system allows you to verify all adjustable sealing parameters, temperature, force, and time, on Brugger heat-sealing devices of the HSG type. It is also available as a rental device.

Highlights

• Easy and reliable verification of sealing force
• Easy and reliable verification of sealing time
• Easy and reliable verification of sealing temperature
• Also available as a rental device

Determining the Parameters

The HSG-P is used to test the accuracy of the Brugger heat sealers HSG-CC, HSG-C, and HSG-ETK. This easy-to-use tester helps meet QC requirements on location in your plant, checking temperature, force, and time quickly and efficiently without complicated setup. For HSG-CC and HSG-C devices, the displayed force can also be calibrated.

Temperature

Attach the temperature jaws in place of the sealing jaws. The calibrator automatically measures six temperatures using PT-100 sensors.

Force/Time

Attach the load cell to the heat protection connection. The force can be calibrated if necessary (HSG-CC/C only). The time is displayed once the jaws reopen.

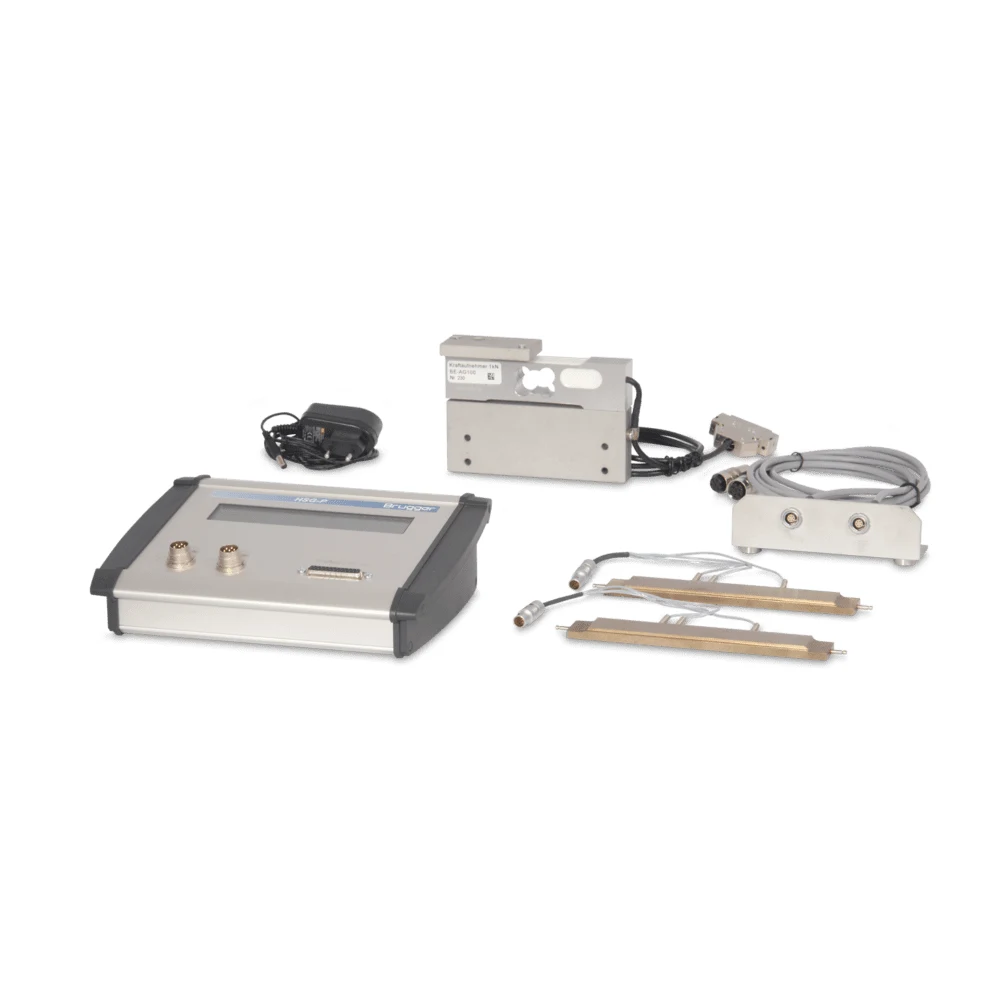

Scope of Delivery

• Testing device HSG-P
• Power supply
• Load cell
• 1 adapter with 2 drop cables for the temperature test jaws
• 2 or 4 test jaws for the Heat-Sealing Machine
• 2 Allen screws for attaching the load cell
• 1 socket screw key

Matching Devices

• Heat-Sealing Machine HSG-CC
• Load Cell
