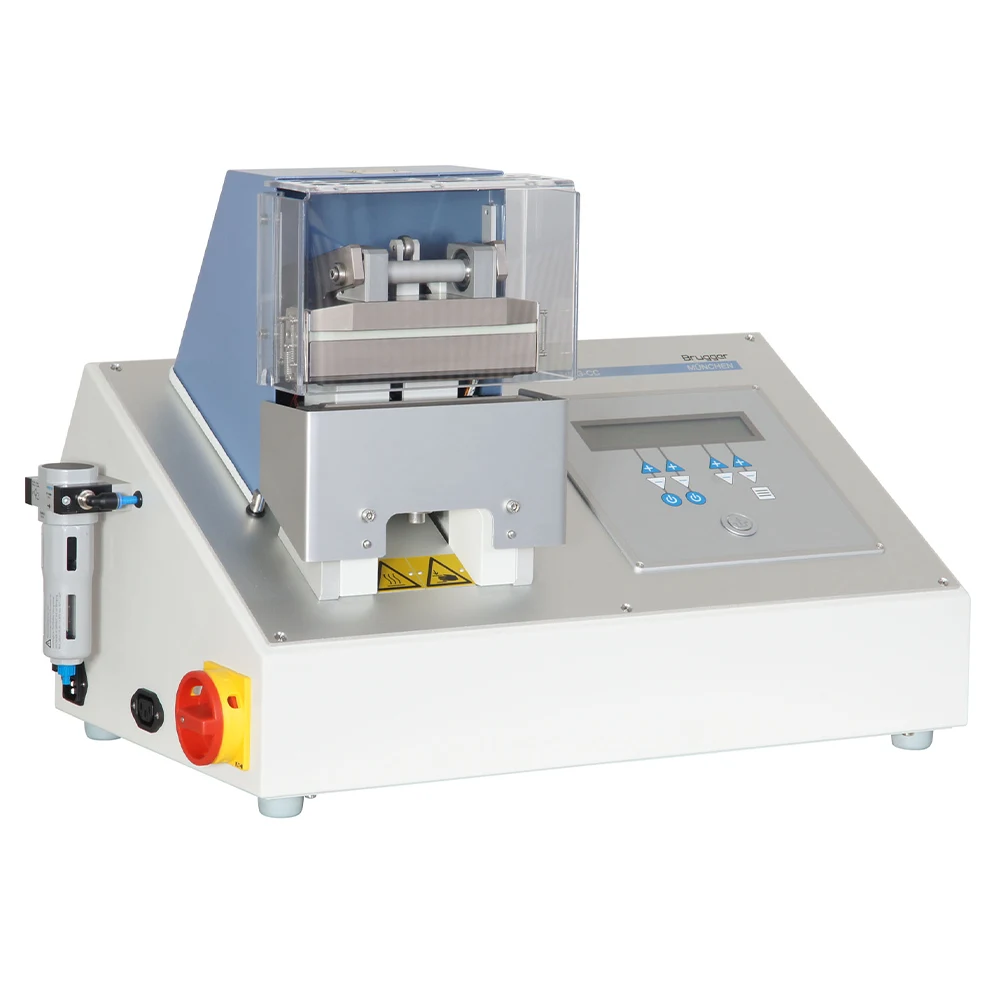

HSG-CC Heat-Sealing Machine | Brugger Feinmechanik
Brugger Feinmechanik’s HSG-CC is for testing the heat sealability of films. The pair of sealing jaws is easy to change and the temperature can be individually set.
Description
HSG-CC Heat-Sealing Machine | Brugger Feinmechanik
Brugger Feinmechanik’s HSG-CC is for testing the heat sealability of films. The pair of sealing jaws is easy to change and the temperature can be individually set.
- Clear parameter view
- Fast changeable sealing jaws
- Easy to use
- Long lifetime
How it works
The HSG-CC is for testing the heat sealability of varnished or coated films. The HSG-CC has a removable pair of sealing jaws which temperature may be individually set between ambient temperature and 300 °C. In addition, you may control the dwell time and the sealing force.
The display shows the actual temp, set temp, dwell time and sealing force. No compressed-air supply? Use our special HSG-CC Compressor Version. You may also wish to obtain our special software to evaluate the results for documentation purposes.
Additionally, for sealing jaws with a smooth surface the sealing pressure will be automatically calculated and displayed from the set sealing force. Test the seam strength of the sealed samples with our Universal Tensile Tester VNG-E. An optional Hot Tack Device available as an accessory.
Also, an optional load cell enables you to adjust the force display any time. Additionally, you may adjust the Temperature, Force and Time parameters with our newly developed HSG-P testing device.
Standing Device
The standing device has an integrated compressor and doesn’t need external compressed air.
- Internal Compressor
- No compressed air supply needed

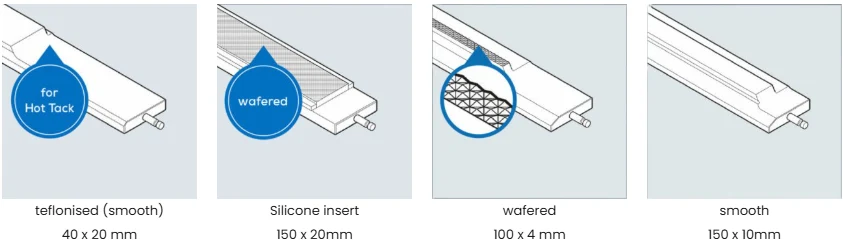

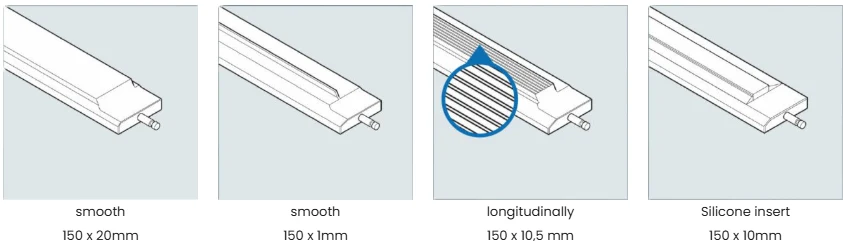

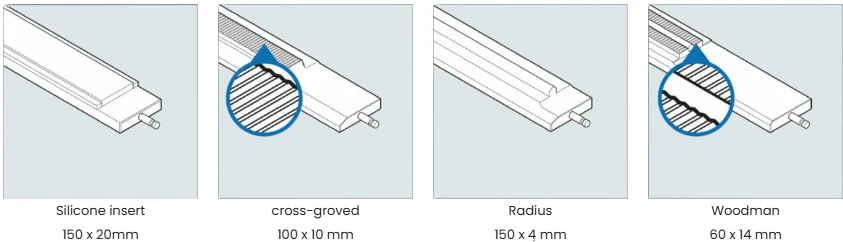

Standard sealing jaws
For the HSG series we also offer the following standard sealing jaws. Other types are also available upon request. Within the range of 150 mm x 20 mm all surface types are available. Learn More
Additional information
| Test Method | Simulation of a head sealing equipment to determine the best sealing parameters |
|---|---|
| Compressed-air supply | Table device: 6 bar to max. 10 bar, Standing device: N/A |
| Seal jaws | 150 mm x 10 mm smooth(standard). Other specifications upon request Seal temperature |
| Sealing temperature (ST) | Ambient temperature up to 300 °C (can be controlled separately for upper and lower sealing jaw) |
| ST Tolerance | 1.5 °C + 1.0 % |
| Sealing Force (SF) | 40 N up to 1000 N for the entire sealing area |
| SF Tolerance | 10 N + 0.5 % |
| Dwell Time (DT) | 0.1 – 300.0 s |
| DT Tolerance | 0.1 s |
| PC Interface | serial standard interface RS232, 9.600 Baud |
| Interface for force adjustment | Internal protocol |
| Dimensions | Table device: 65 x 35 x 44 cm, Standing device: 68 x 48 x 125 cm |
| Weight | Table device: 24 kg, Standing device: 76 kg |
| Storage Temperature | 0 °C – 50 °C |
| Working Temperature | 15 °C – 35 °C |
| Relative Humidity | max. 80 %, non-condensing |
| Electrical connection | 230 V / 50 – 60Hz, Table device: max. 500 W, Standing device: 900 W |
| Standard | Following ASTM F 2029 – 16 |
