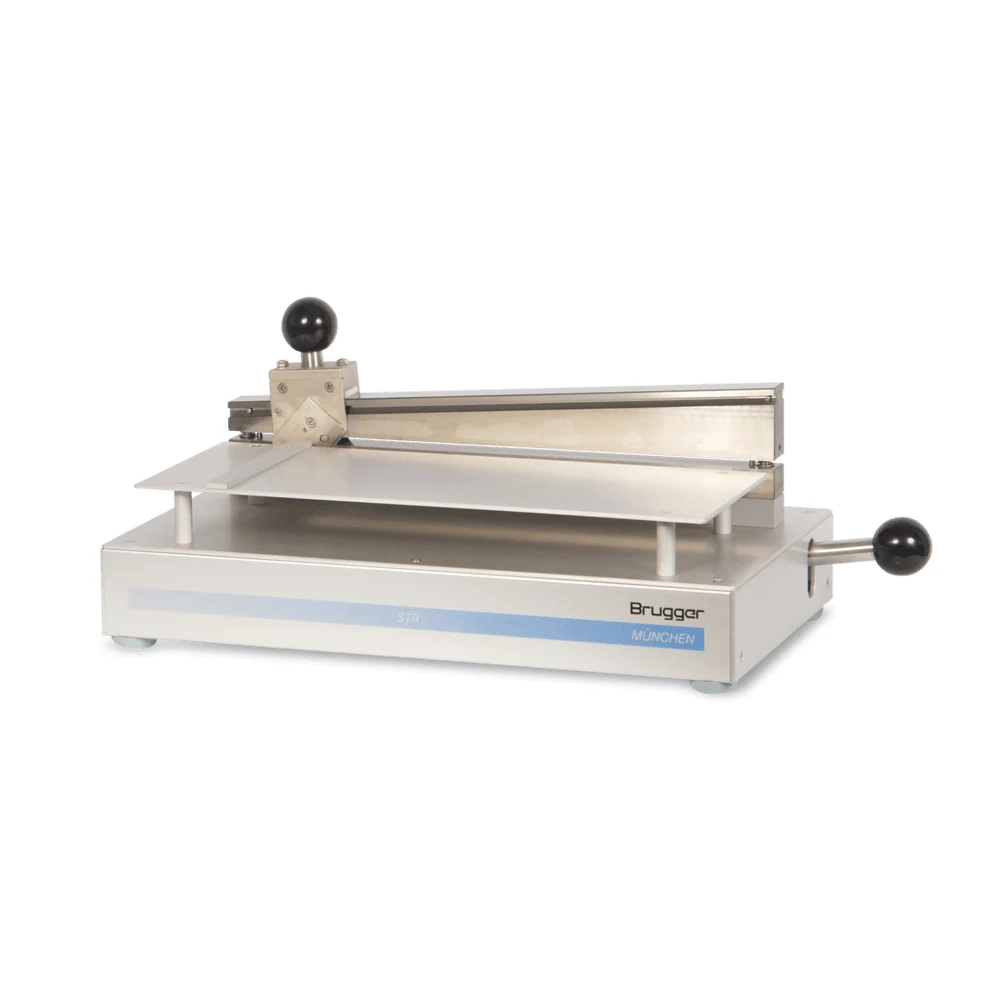

Brugger Feinmechanik’s STR provides easy cutting to receive exact strip-shaped specimen for tensile and sealing tests.
Description
STR Strip Cutter | Brugger Feinmechanik
Brugger Feinmechanik’s STR provides easy cutting to receive exact strip-shaped specimen for tensile and sealing tests.
- Easy and comfortable to use
- Available for 15mm or 1 inch
- Changeable standard blades
- For film, paper, cardboard etc.
How it works
This precision tool may be used whenever strip-shaped specimen made of film, paper, cardboard and similar material is desired.
The standard STR has a 15 mm cutting width and a cutting length of up to 300 mm to produce customised specimen.
Examples are specimen needed for Hot Tack Tests and the determination of the bond strength, seam strength and tensile strength based on international standards.
Unlike the traditional cutting tools, the STR is equipped with removable industrial blades. You can replace worn blades in no time. There is no need for grinding the blades, which can be expensive and time-consuming.
Additional information
| Cutting width | 15 mm, optionally 25.4 mm (1 inch) or widths in between |
|---|---|
| Cutting length | 300 mm |
| Sample Thickness | max 300 µm |
| Dimensions | 530 x 260 x 220 mm |
| Weight | 8 kg |
| Storage temperature | 0 °C – 50 °C |
| Working temperature | 15 °C – 35 °C |
| Relative humidity | max. 80 %, non-condensing |
| Standard | ISO 527 3 – Plastics – Determination of tensile properties |
| Required Accessories | Industrial Blades |
