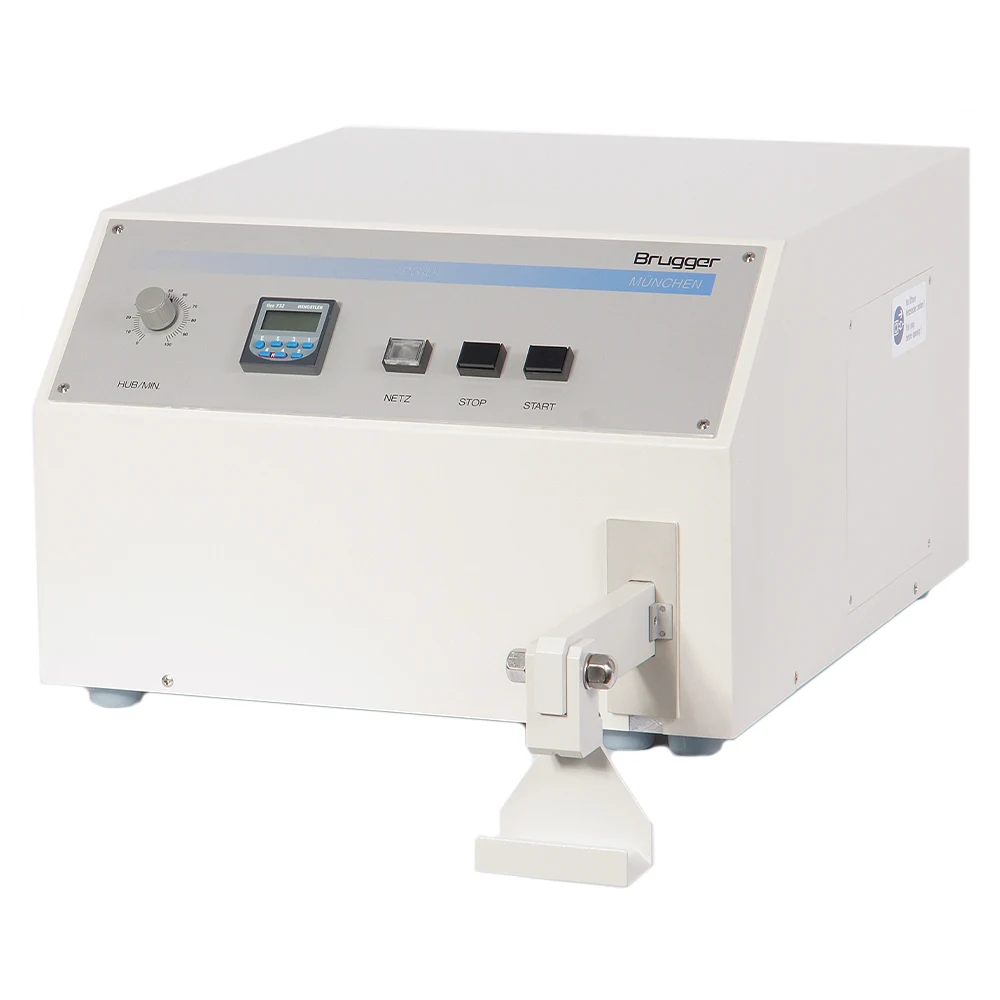

TPG-U Carrying Strength Tester | Brugger Feinmechanik
Brugger Feinmechanik’s TPG-U allows you to determine the strength of handles on packaging material, such as carrier bags. An up and down movement simulates the stress on handles.
Please select a valid form
Description
TPG-U Carrying Strength Tester | Brugger Feinmechanik
Brugger Feinmechanik’s TPG-U allows you to determine the strength of handles on packaging material, such as carrier bags. An up and down movement simulates the stress on handles.
- Adjustable cycle frequency
- Different drop hights
- Free choice of cycles
How it works
The TPG-U allows you to determine the strength of handles on packaging material, such as carrier bags.
An up and down movement simulates the stress on handles. Examples are handles on filled carrier bags.
The cycle frequency and the drop height can be preset within a wide range; after reaching the preset number of strokes the device automatically stops the test procedure.
Additional information
| Cycle frequency | 10 – 100 pro min. |
|---|---|
| Drop heights | 10 / 15 / 23 / 30 mm |
| Preset number of strokes (counter) | up to 99999 |
| Dimensions | 48 x 42 x 28 cm |
| Weight | 32.5 kg |
| Storage temperature | 0 °C – 50 °C |
| Normal operating temperature | 15 °C – 30 °C |
| Relative humidity | max. 80 %, non-condensing |
| Electrical connection TPG-U | 230 V / 50 – 60 Hz, power consumptions ca. 350 W, approx. |
| Standard | RAl quality and test conditions for plastic carrier bags |
