Hildebrand Durometer-Operating Stand Model OS-2 (212 000)

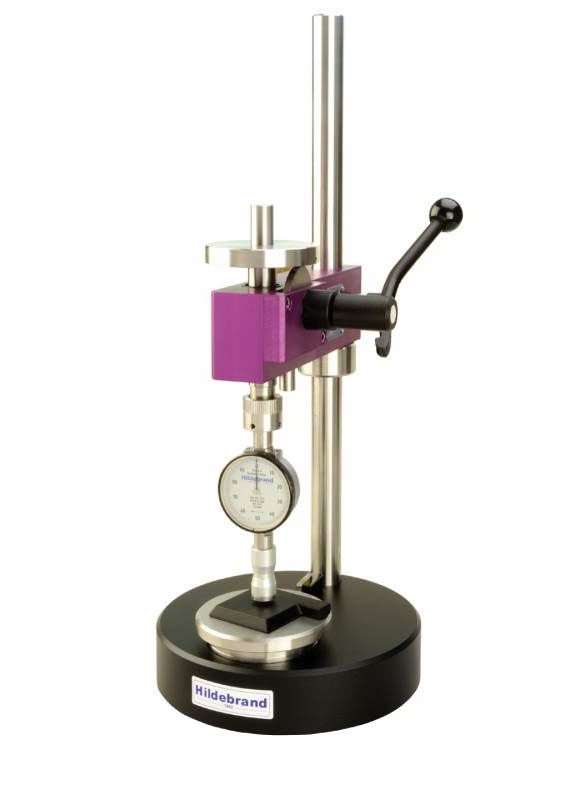

Hildebrand Durometer-Operating Stand Model OS-2

• Suitable for hardness testing according to Durometer Type A and also D (DIN ISO 48-4, ISO 868, ISO 48-4 and ASTM D 2240)
• Contact weight 1000 gram, incl. adjusting part 20 Shore for adjusting the Durometer coplanar to the basis.
• Please order Durometer separately.
• (Weight for Shore D see at 212 008)

The Hildebrand Durometer Operating Stand Model OS-2 also allows for accurate and repeatable Durometer readings. It also rules out subjective test errors, due to differing load application forces or non-vertical application of the durometer to the test piece.

Features:
The Durometer Operating Stand works on the constant load principle. Position sample on the support table. Lower Durometer shock-free due to a manual operation of lever. The hardness value can be read directly from the Durometer. The stable Durometer unit consists of Aluminium. Due to the low weight, the durometer unit can be easily adjusted in height. Small and big samples can be tested in the Durometer Operating Stand. A crash ring – mounted on the column – eliminates a crash between the durometer and support table, when lifting or lowering the Durometer unit.

Specs:

• Extension: 115 mm
• Support table diameter: 98 mm
• Max. sample thickness: 180 mm
• Durometer unit:
• Stable aluminum design
• Weight Durometer D: Optional
• Net weight: 16,4 kg
• Standards:
  DIN ISO 7619, ISO 868, ISO 7619, and also ASTM D 2240
• For Durometer types:
  A, AO, D, B, C, DO, O NOT OO
  • Also add adapter to make standard operating stand shore OO compatible

Includes:

• Operating Stand
• Packaging
• Operating Instructions
• 4000g Weight for Shore D also Sold Separately
  • Product No: 212 008
• NOT Suitable for Shore OO

Product No: 212 000

Hildebrand Durometer-Operating Stand Model OS-2
