FHLR2GCB2G (2x4mm²)
$43.00

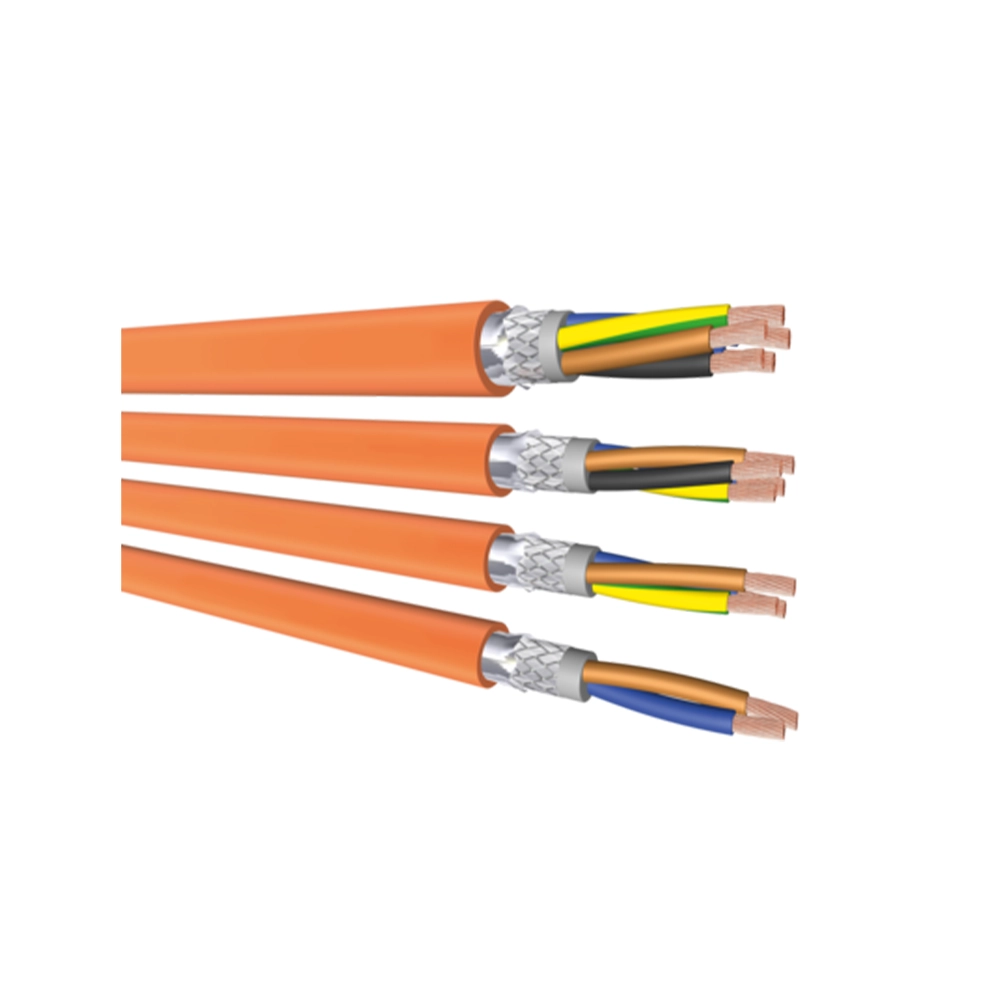

FHLR2GCB2G (2x4mm²) Coroflex shielded multi-core HV cables (9-2641) for Hybrid and Battery Vehicles – Temperature Class +180 °C
Eurotech is Proud to be Coroflex Cable’s Approved North American Supplier
*Online order quantities limited
*For higher volume orders, please request quote or call +1.330.467.0205
*Online orders typically ship within 2 business days (US Free Shipping Excluding Alaska & Hawaii)
FHLR2GCB2G (2x4mm²) Coroflex shielded multi-core HV cables (9-2641) for Hybrid- and Battery Vehicles – Temperature Class +180 °C
Characteristics
Coroflex high-voltage cables are suitable for nominal voltages of up to 600 volts a.c. / 1,000 volts d.c and withstand temperatures of up to 180 °C. All cables of our HV product family are characterized by a high degree of roundness, which simplifies the processing.
- Low Bending Radii
- Reliable Insulation Resistance
- Excellent Sealing Properties
- Talc-free Surfaces
- No Perfluoroalkyl and Polyfluoroalkyl Substances (PFAS)
- High Performance Silicone
- Weight Saving Potentials
- Ready for Optimized Processing
Additional information
| Weight | 0.49 lbs |
|---|---|
| Family Type # | 9-2641 (copper multi-core shielded cables) |
| Material | Copper |
| Shielded | Yes |
| Cross-Section (mm²) | 2×4 |
| Multi-Core | Yes-2 |
| Core Diameter (mm) | 3.7 |
| Min. Wall Thickness (mm) | 0.38 |
| Weight (g/m) | 220 |
| Low Op Temp | -40°C |
| High Op Temp | +180°C |
| MOQ (km) | 1.00 |
| Cable Weight Per Spool (lb) | 485 |
| Spool Size | 800 |
| Spool Weight (lb) | 31 |
| *Note | *Cable may include splice(s), *Orders may be shipped as multiple coils / spools depending on weight and length |
