FHLR2G2G (2x6mm²)

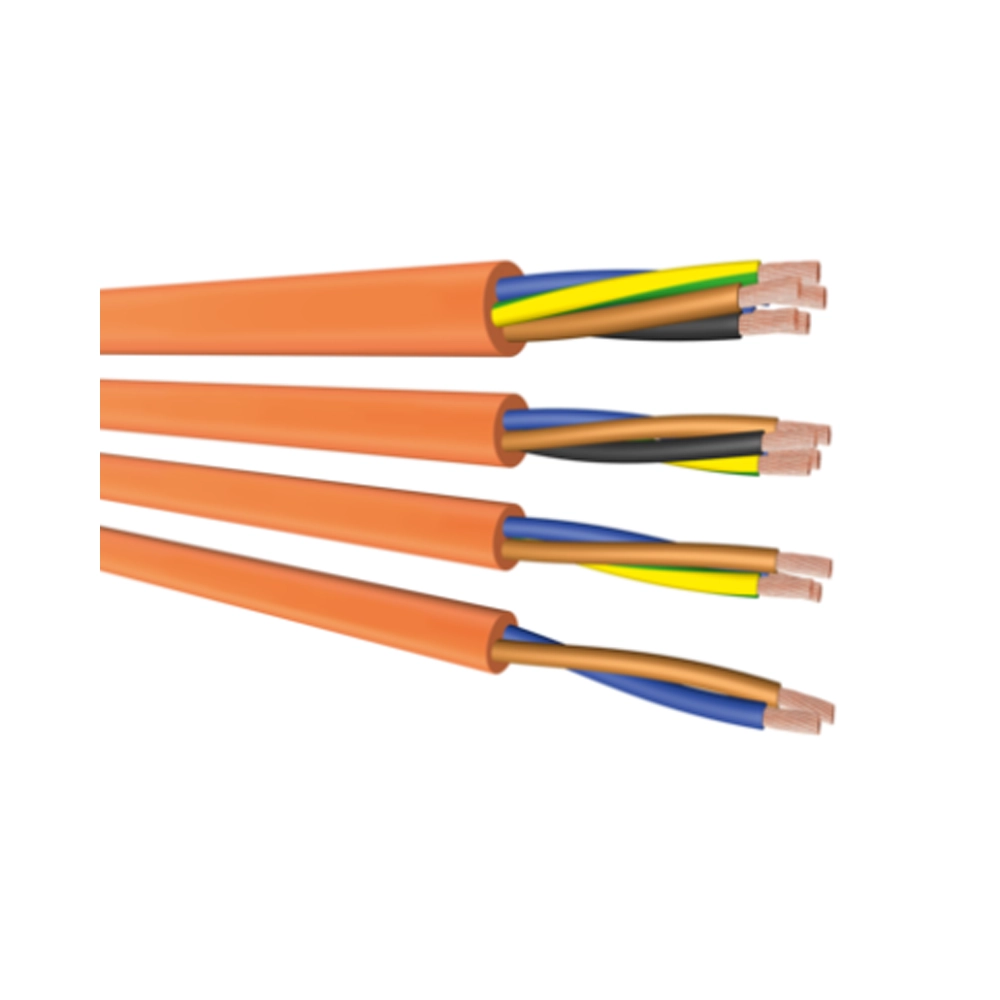

FHLR2G2G (2x6mm²) Unshielded Multicore High-voltage Cables (9-2642) for Hybrid- and Battery Vehicles – Temperature Class +180 °C.
Out of stock
Description
FHLR2G2G (2x6mm²) Unshielded Multicore High-voltage Cables (9-2642) for Hybrid- and Battery Vehicles – Temperature Class +180 °C.
Applications
FHLR2G2G (2×6) Unshielded multi-core high voltage cables for hybrid and battery vehicles. Coroflex high-voltage cables are suitable for nominal voltages of up to 600 volts a.c. / 1,000 volts d.c and withstand temperatures of up to 180 °C. Coroflex HV products offer a high degree of roundness, which simplifies the processing. During development of our high-voltage sheathed cables, great importance is attached to the processability by our customers. A filling layer over the core stranding provides a circular substructure for the multi-core sheathed cables. The outer sheath can then be cut off without risk of injury to the actual core insulation.
Characteristics
- Low Bending Radii
- Reliable Insulation Resistance
- Excellent Sealing Properties
- Talc-free Surfaces
- No Perfluoroalkyl and Polyfluoroalkyl Substances (PFAS)
- High Performance Silicone
- Weight Saving Potentials
- Ready for optimized Processing
Additional information
| Weight | 0.48 lbs |
|---|---|
| Family Type # | 9-2642 (copper multi-core unshielded cables) |
| Material | Copper |
| Shielded | No |
| Cross-Section (mm²) | 2×6 |
| Multi-Core | Yes-2 |
| Core Diameter (mm) | 4.3 |
| Min. Wall Thickness (mm) | 0.28 |
| Weight (g/m) | 218 |
| Low Op Temp | -40°C |
| High Op Temp | +180°C |
| MOQ (km) | 0.70 |
| Cable Weight Per Spool (lb) | 336 |
| *Note | *Cable may include splice(s) |
YOUR ADVANTAGES AT A GLANCE
The Result of Years of Development Work
Coroflex always has its finger on the pulse of the industry and understands your key requirements. The result is innovative solutions in the high-voltage sector that offer numerous advantages:
- Long lifespan and high functional stability
- Reduction of installation space and weight
- Copper and aluminum cables
- Temperature classes 150°C and 180°C
- Cables according to LV216 and ISO 19642
- Voltage class up to 1,000 V AC / 1,500 V DC
- Designed for automated processing
- Use in the global electromobility market
- Individual consulting for the efficient design of system components
- Talc-free
- No Perfluoroalkyl and Polyfluoroalkyl Substances (PFAS)
- Individual solutions
- Sustainability
- High-voltage cables from Coroflex mean an important step towards sustainability. The products are manufactured in a way that saves resources and materials. Their innovative design saves space and weight in the vehicle, thus supporting CO2 reduction and enabling higher ranges of electric vehicles. Coroflex silicone high-voltage cables are free of PCB and talc. With all these properties, these high-voltage cables support the vision of a green vehicle electrical system.
| ISO 6722-1 | SAE J1128 & J1127 | |
|---|---|---|
| MM2 | MM2 (Ref.) | AWG (American Wire Gauge) |
| 0.13 | - | 0.13 ~ 26ga, but SAE J1128 only goes up to 24 ga |
| 0.22 | 0.22 | 24 ga |
| 0.35 | 0.35 | 22 ga |
| 0.5 | 0.50 | 20 ga |
| 0.75 | 0.80 | 18 ga |
| 1 | 1 | 16 ga |
| 1.5 | ||
| 2 | 2 | 14 ga |
| 2.5 | ||
| 3 | 3 | 12 ga |
| 4 | ||
| 5 | 5 | 10 ga |
| 6 | ||
| 8 | 8 | 8 ga |
| 6 ga | ||
| 25 | 25 | 4 ga |
| 35 | 35 | 2 ga |
| 50 | 50 | 1 ga |
| 55 | 55 | 1/0 ga |
| 70 | 70 | 2/0 ga |
| 95 | 95 | 3/0 ga |
| 120 | 120 | 4/0 ga |
