ET14 | Eurotech

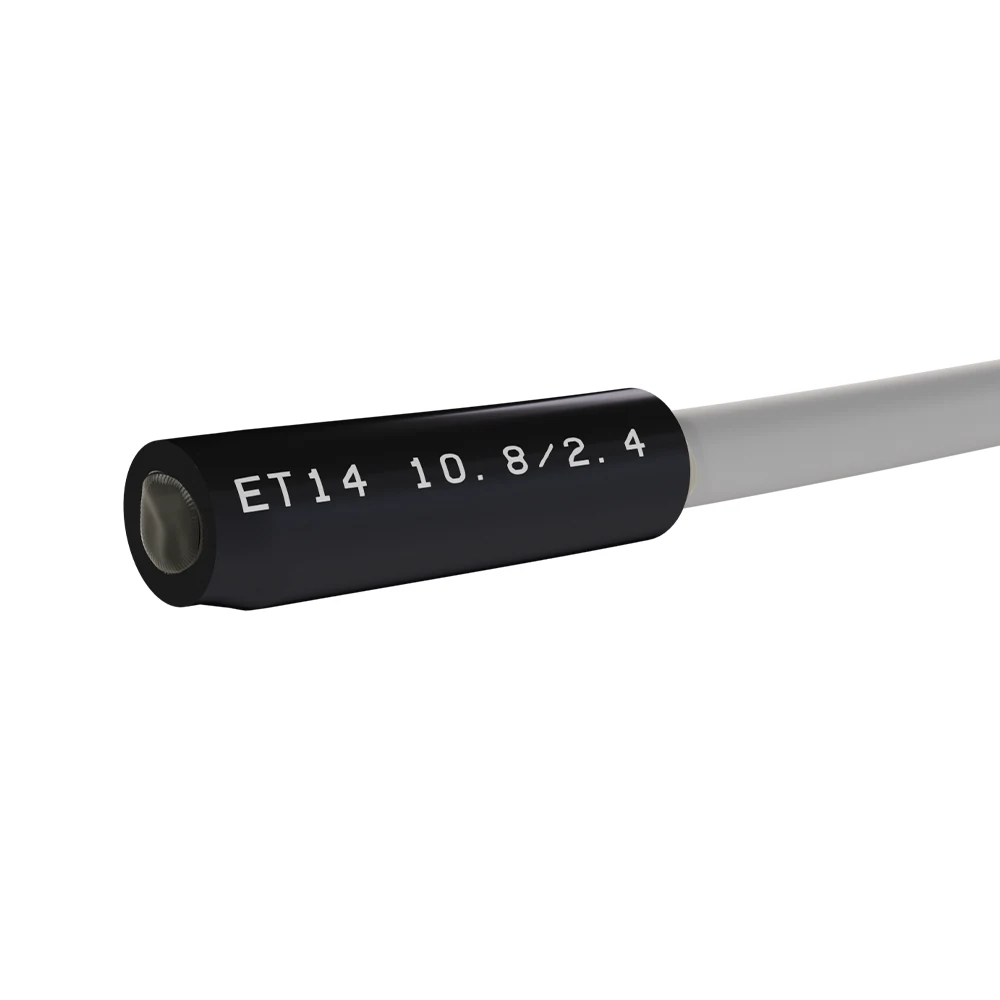

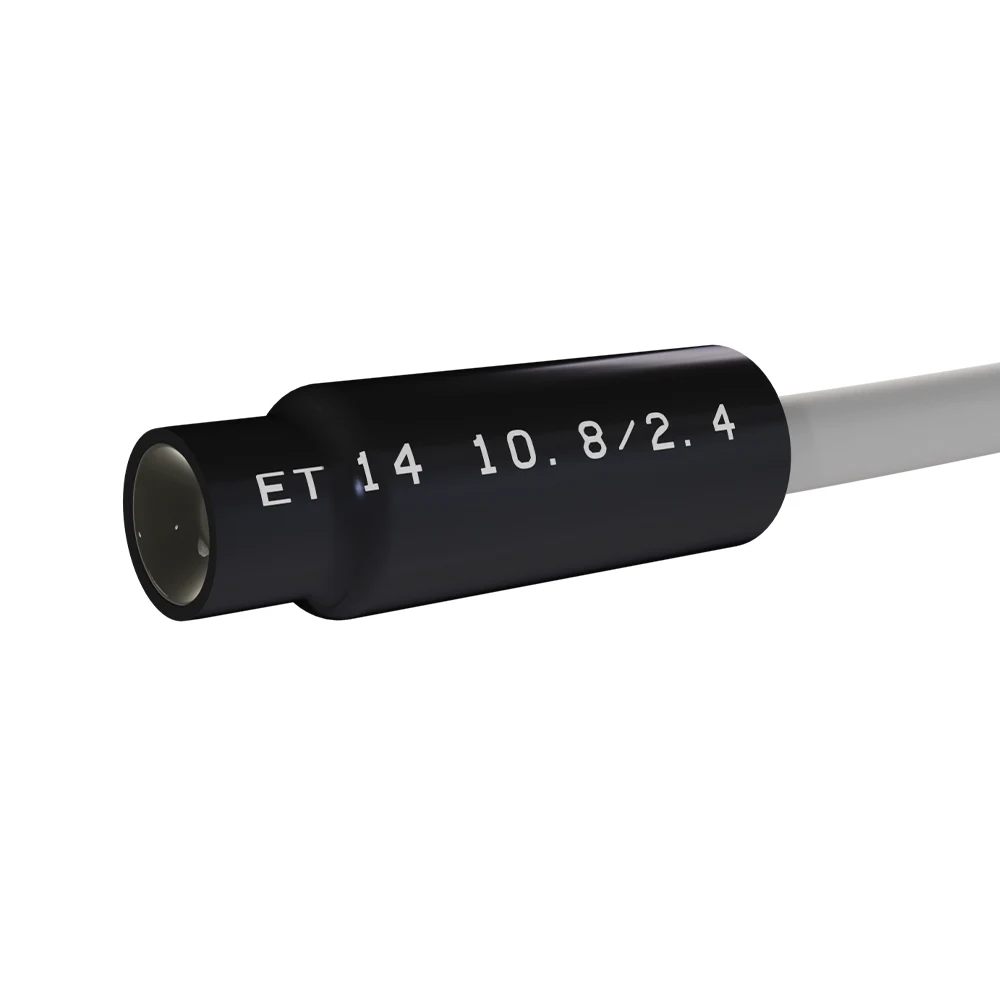

ET14 Dual Wall CAP Heat Shrink Tube by Eurotech
Adhesive lined flame-retardant heat shrink cap, that seals and mechanically protect end or stub splices in wiring harnesses and electronic assemblies.
Description
ET14 Dual Wall CAP Heat Shrink Tube by Eurotech
Standard Temp CAP | -40 to 125C | PA Adhesive | High Viscosity | Semi Rigid, Flame Retardant Jacket
Applications
- Sealing and strain relief of multi wire splices, terminals and connectors
- Abrasion protection of hose and pipes
- Passenger, commercial vehicles, heavy equipment Fleet and recreational vehicles
- Consumer electronics and white goods
- Meets Ford, GM, Daimler, International, Caterpillar and others, end splice protection requirements
- Technical crossover for Tyco ESCAP
Features
| Features | Benefits |
|---|---|
| 4:1 Shrink Ratio | Use less sizes to fit varying / multiple splice configurations & profiles |
| Semi-Rigid | Excellent protection against corrosive automotive fluids and oils at elevated temperature |
| Stiff, Rugged Outer Jacket | Excellent strain relief, with high impact and abrasion resistance. BK and CR colors available |
| Thick Adhesive Layer | High viscosity adhesive seals and protects against current leakage, water, corrosion and contaminants. Bonds readily to PVC, XLPE and PP-EPDM cable jacket |
| Continuous Operating Temperature |
-40°C-125°C Min full recovery temperature of 135°C |
Additional information
| Model | ET14 |
|---|---|
| Mode | Shrinkable |
| Wall Type | Dual Wall Cap |
| Splice Sealing | Yes |
| OEM Approvals (Partial Snapshot) | Ford, GM |
| Crossover Product (Technical) Partial Snapshot | TE ES-CAP |
| Shrink Ratio | 3:1, 4:1, 5:1 |
| ID Supplied / ID Recovered (mm) | 16.0 / 4.0, 18.3 / 4.4, 21.0 / 4.0, 3.2 / 1.0, 5.7 / 1.3, 7.4 / 1.7 |
| Adhesive Feature | High Viscosity |
| Material Type | Polyolefin, crosslinked |
| Adhesive Type | Polyamide |
| Color | Black, Clear |
| Tubing Code | DCS125-40PXQPAH |
| Min Shrink Temp | 100 |
| Min Full Recovery Temp | 135 |
| Length Change | ±15% |
| Halogen Free | No |
| RoHS | Yes |
| REACH | No |
| ELV | Yes |
| MIL | No |
| Low Op Temp | -40 |
| High Op Temp | 125 |
