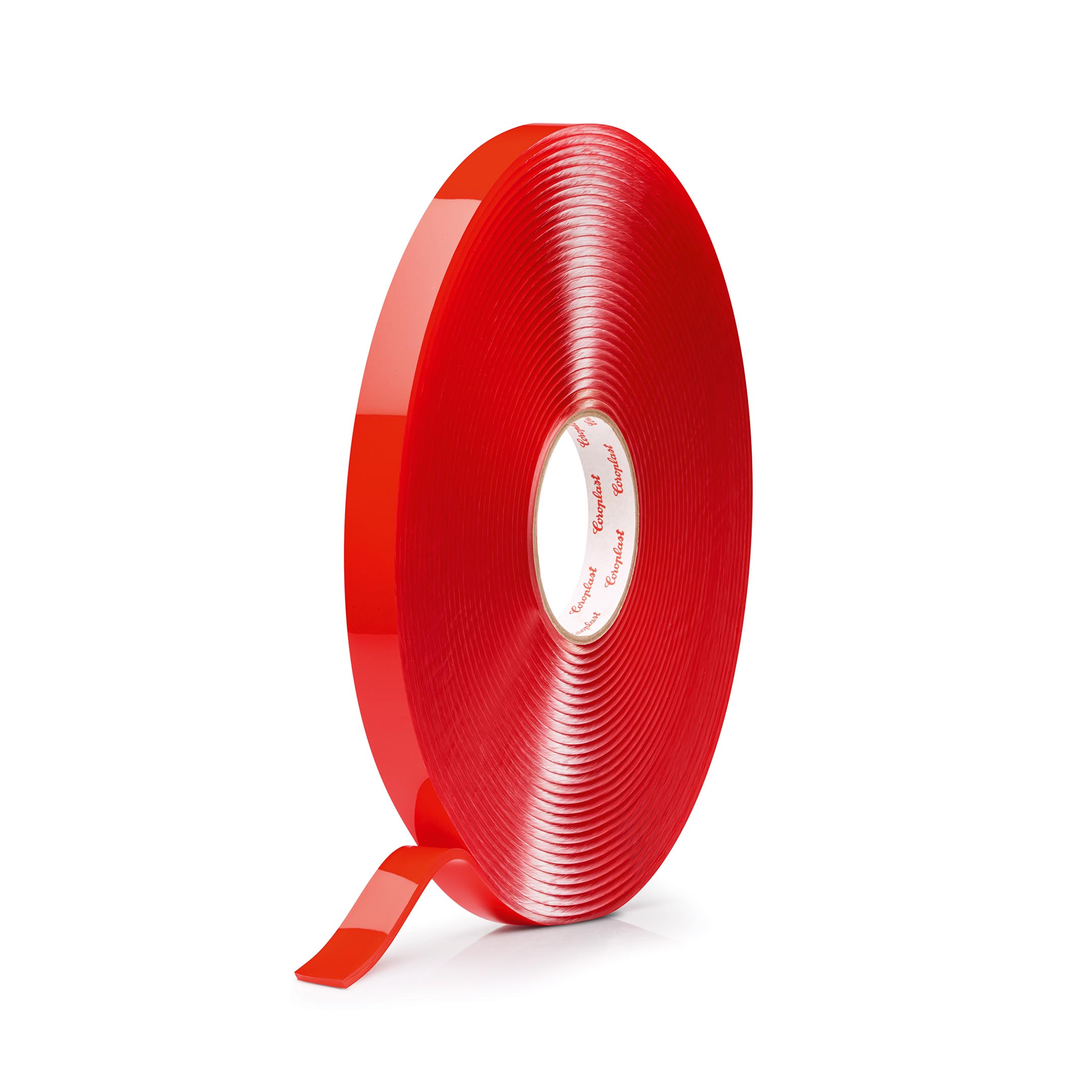

Coroplast 9030 SPT

High-Performance Adhesive Tapes 9000 SPT Series Coroplast 9030 SPT

Acrylic Mass | 3.0mm Thickness | 160C Heat Resistance | Highly Transparent | Multipurpose Tape for Indoor & Outdoor Use
Download Technical Data Sheet

Order Die CutsRequest Quote
Product Configurator
Name
Name
First
Last
*If no number is given, we will maximize the number of pieces to fit the selected material size. Requested quantity must fit dimensionally within the selected material dimension above. If quantity exceeds available space, you may be contacted and / or refunded for your order (minus the CC processing fee)

Maximum file size: 10MB

Allowed File Types: DXF EPS AI DWG PDF SVG CAD TIF TIFF

Description

Coroplast 9030 SPT Adhesive Tape

High-Performance Adhesive Tape

Holds and holds and holds. High-performance adhesive tapes of the 9000 SPT series from Coroplast Tape are distinguished by their homogeneous, continuously adhesive, and highly flexible acrylate adhesive compound. As a result, they are far superior in their performance to conventional double-sided foam adhesive tapes and mechanical joint connections. Regardless of whether for industrial or automotive applications: Our high-performance adhesive tapes provide a reliable and economical method for permanent joining of different materials.
  • Highly transparent and viscoelastic acrylic adhesive mass with good, well-balanced performance profile
  • Particularly suitable for applications that require highly transparent and permanent adhesive tape
  • Multipurpose tape for indoor and outdoor use
  • Applications include bonding metal and glass, transparent plastics, signs, profiles and emblems
  • Excellent adhesion and shear strength values
  • Adhesive tape thickness between 0.05 mm and 3.0 mm are available
  • Can supply in converter rolls, single rolls, level wound spools, die-cut parts or in DIY packaging (assembly set) in a pillow pack (e.g. 9005 SPT) upon request

Additional information

Tape Carrier

Acrylic mass

Tape Adhesive

Acrylic

Tape Thickness

3

Tape Heat Resistance

160

Tape Series

9000 SPT series

Coroplast Teaser

Subseries 9000: transparent

Tape Industry

Fastening and joining tape systems

Tape Reference Internal IDs

326, 235, 117

Coroplast ID Number

169

Elongation at Break (%)

700

Tensile Strength (N/cm)

29

Adhesion to Steel (N/cm)

30

Dynamic Shear Strength (N/cm2)

25

Static Shear Strength (min)

> 10.000
